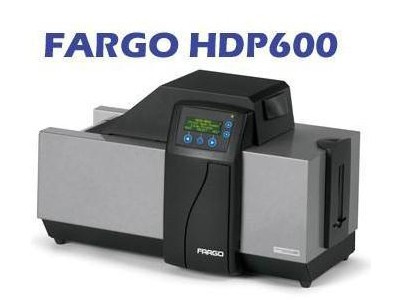

全新的針對CR80卡系列,
專業的熱升華,熱轉印原理,
具有加裝防偽膜功能,
寫各種智能卡的模塊于一體的多功能證卡打印機!
| 技術參數
 | |
| 列印方法 | HDP 染色升華/樹脂熱轉印 |
| 解析度 | 300DPI |
| 色彩 | 高達1670萬種或256色/像素 |
| 列印色帶選擇 | 全色帶(Y,M,C)* 全色帶 + 黑色(Y,M,C,K) * 全色帶 + 2黑色(Y,M,C,K,K)* |
| 打印速度 | 44秒/張 |
| 卡片尺寸 | CR-80 (3.375"L*2.125"W/8506mmL*54mmW) |
| 打印區域 | Over-the-edge on CR-80 cards |
| 打印尺寸 | 標準的CR-80卡卡尺寸:3.375"L*2.125"W/85.6mmL*54mmw |
| 字體 | true type fonts() |
| 卡的厚度 | Print only:.030"(30mil)to .070(70mil)/.762mm to 1.778mm |
| 卡片類型 | ABS ,PVC ,PET ,PETG ,proximity,smart and mag stripe cards,optical memory cards |
| 進卡槽容量 | 200 cards(.030"/.762mm) |
| 出卡槽容量 | 100 cards(.030"/.762mm) |
| 內存 | 8MB RAM |
| 軟件驅動 | Windows 2000/XP |
| 編碼選項 | ISO Magnetic stripe Encoding Module,dual high-and low-coercivity, tracks1,2,and 3;JIS II Magnetic Stripe Encoding Module;E-Card Docking station(required for all e-card options or 3rd party smart Card Encoder(HID iCLASS and MIFARE); Contact Smart Card Encoder reads from and Writes to all ISO7816-1/2/3/4 memory and microprocessor smart cards(T=0,T=1)as well as synchronous cards; Prox Card Encoder (HID read-only) |
| 系統要求 | IBM-PC or compatible, windows 2000/XP, Pentium class 133MHZ computer with 32MB of RAM or higher,200MB free hard disk space or higher and available USB port |
| 接口 | USB1.1(兼容USB2.0) |
| 運轉溫度 | 65°to 80°F/18°to 27°C |
| 濕度 | 20- 80 % non-condensing |
| 電壓 | 100-240 VAC , 4.25A |
| 頻率 | 50/60 Hz |
| 熒屏 | 用戶界面友好,4行LCD顯示 |
| 重量 | 17.7KG |
| 其它選項 | 32MB RAM Upgrade Kit; Print cleaning Kit ;Exteral Print Server(Windows only;required for stand-alone networking of printer/encoders); Card Laminatio Module; Card Encoding Module |
